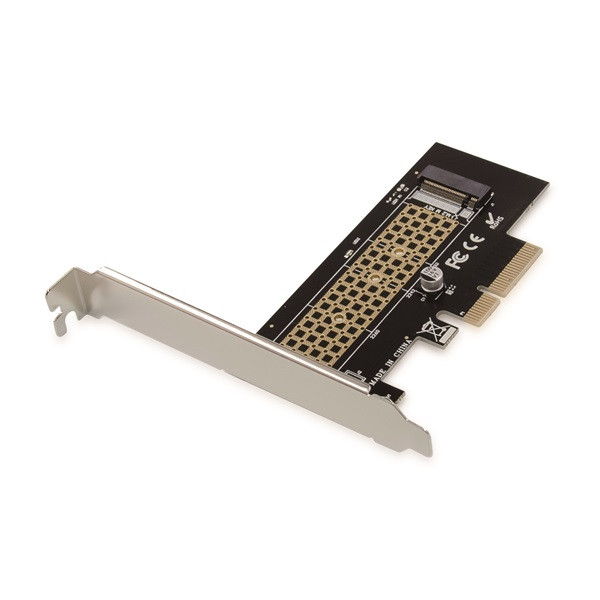

EMRICK05B M.2 NVMe PCIe Card
Model Number
EMRICK05B
SKU
110013707
- Compliant with PCI Express Specification Revision 3.0
- Supports M.2 SSD in sizes 22*30mm, 22*42mm, 22*60mm and 22*80mm
- 1 x M Key M.2 socket for PCIe NVMe SSD with M/B+M Key connector
- Simple Plug and Play installation
| Logistics data |
|
| Harmonized System (HS) code |
847330 |
| Customs product code (TARIC) |
8473302000 |
| Others |
|
| Drive compatibility |
M.2 PCIe NVMe SSD |
| Compatible operating systems |
Windows XP
Windows Vista
Windows 7
Windows 8
Windows 10 |

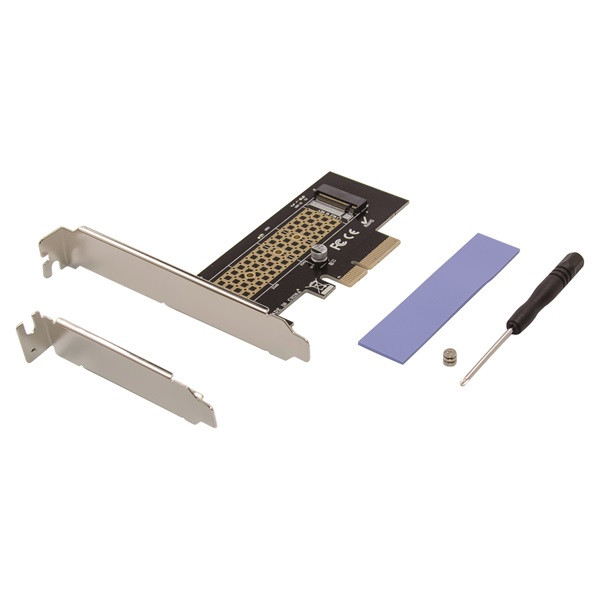

| Package Contents |
EMRICK05B
Multilingual quick installation guide
Screws and screwdriver
Low profile bracket
Silicone heat sink |
| Physical Specifications |
|
| Dimensions (W x D x H) |
40 x 18 x 102 mm |
| Product weight (kg) |
0,042 |
| General |
|
| Color |
Black |
| EAN |
4015867223673 |
| Model Number |
EMRICK05B |
| System specifications |
|
| Connector |
PCIe x4 |
| PCI version |
PCIe 3.0 |
This M.2 NVMe SSD PCIe Adapter connects directly to the motherboard, and features ultra-fast PCIe 3.0 X4 lanes which transmit bandwidth up to 32GT/S. It also supports the majority of M.2 key M SSD drive sizes. This adapter improves system speed, and will enhance the efficiency of office and entertainment equipment.
