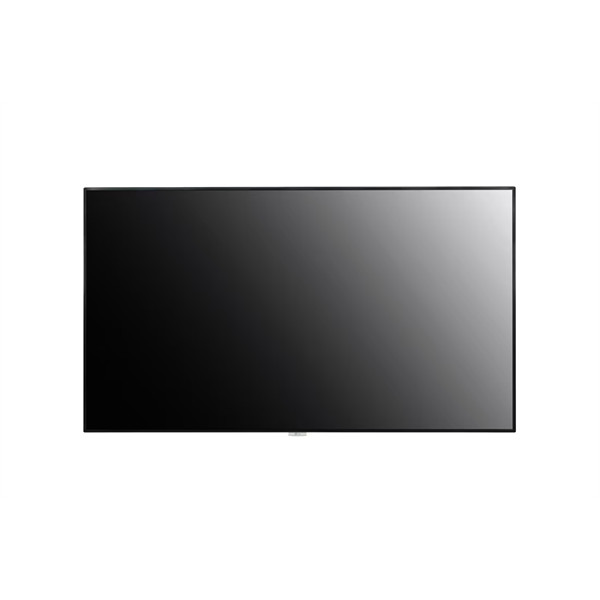

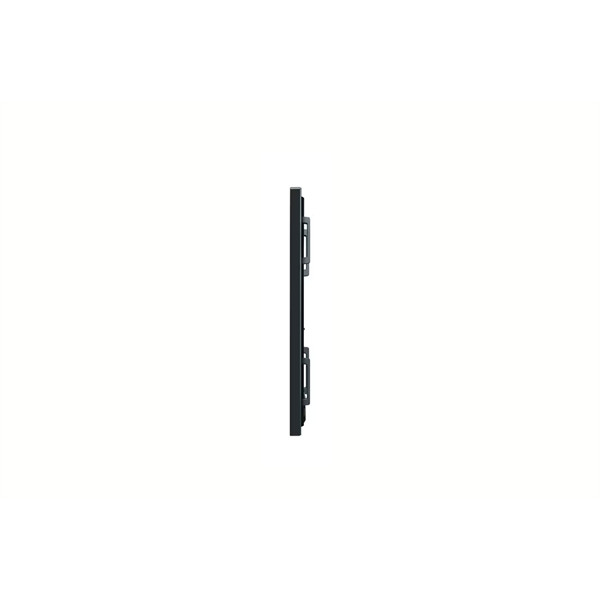

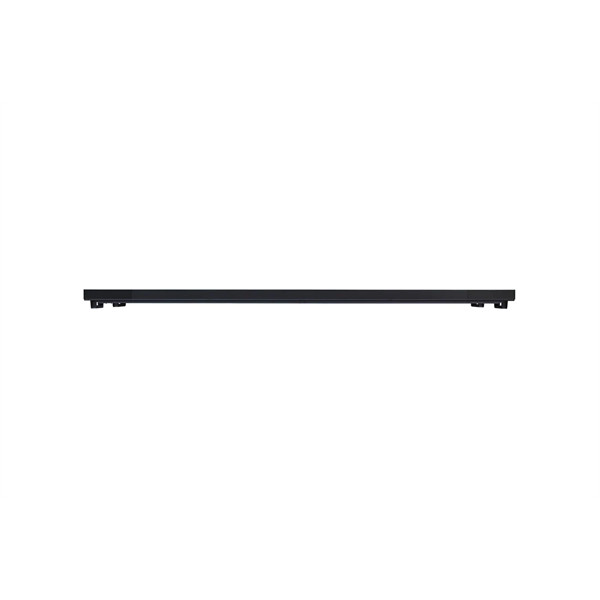

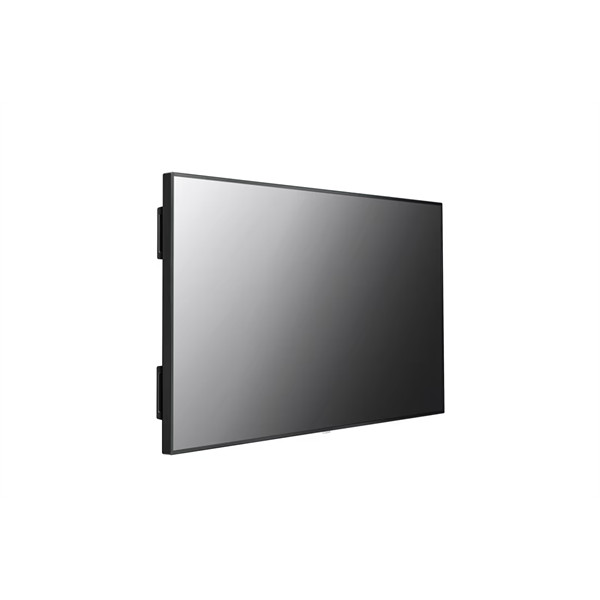

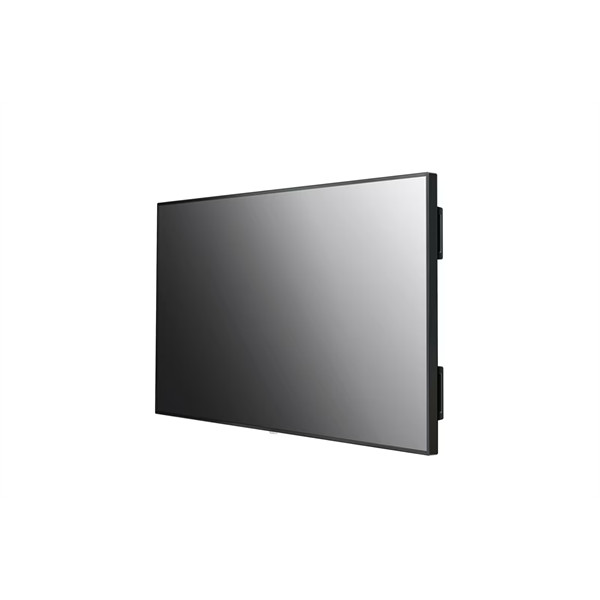

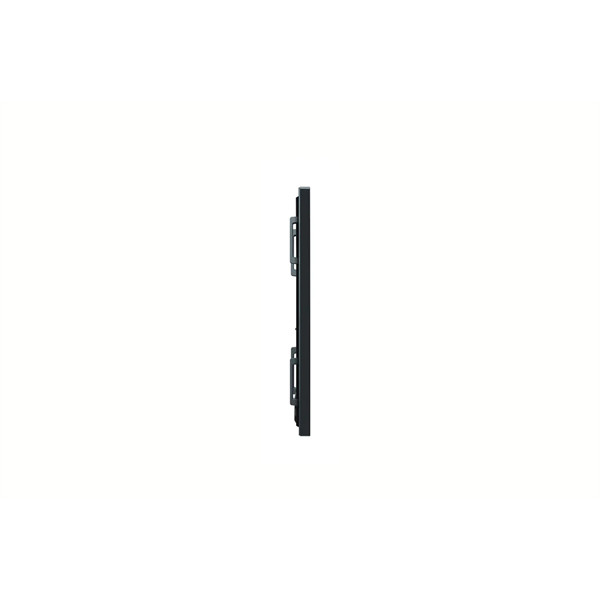

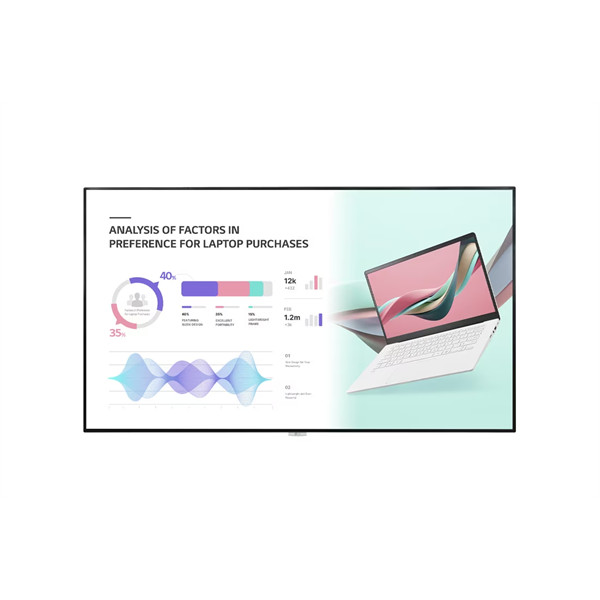

| 98UH5J-H |
| New High Haze UHD Standard Signage |
| |
| |
|
|
| |
| Specs |
| |
| PANEL |
| |
- Screen Size: 98"
-
Panel Technology: IPS
-
Back Light Type: Direct
-
Aspect Ratio: 16 : 9
-
Native Resolution: 3840 x 2160 (UHD)
-
Refresh Rate: 60Hz
-
Brightness: 500nit (Typ.)
-
Contrast Ratio: 1,200:1
-
Dynamic CR: 1,000,000:1
-
Color gamut: NTSC 72%
-
Viewing Angle(H x V): 178 X 178
-
Color Depth: 10bit, 1.07Billion colors
-
Response Time: 8ms (G to G)
-
Surface Treatment(Haze): 28%
-
Life time: 50,000Hrs (Typ.)
-
Operation Hours (Hours/Day): 24/7
-
Portrait / Landscape: Yes / Yes
.
|
| |
| |
| CONNECTIVITY |
| |
- Input: HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1)
-
Output: HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack)
.
|
| |
| |
| MECHANICAL SPECIFICATION |
| |
- Bezel Color: Black
-
Bezel Width: Even bezel : 14.9mm
-
Weight(Head): 66Kg
-
Packed Weight: 99Kg
-
Monitor Dimension(W x H x D): 2191.8 x 1246.8 x 86.1mm (without Handle and LG Logo)
-
Carton Dimensions(W x H x D) (Box outer size): 2342 x 1386 x 420mm
-
Handle: Yes
-
VESATM Standard Mount Interface: 800 x 400
.
|
| |
| |
| KEY FEATURE |
| |
- Key features: Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN,Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
.
|
| |
| |
| ENVIRONMENT CONDITIONS |
| |
- Operation Temperature: 0 °C to 40 °C
-
Operation Humidity: 10 % to 80 %
.
|
| |
| |
| POWER |
| |
- Power Supply: AC 100-240V~, 50/60Hz
-
Power Type: Built-In Power
.
|
| |
| |
| POWER CONSUMPTION |
| |
- Typ.: 420W (TBD)
-
Max.: 570W (TBD)
-
BTU (British Thermal Unit): 1433 BTU/Hr(Typ.), 1945 BTU/Hr(Max) (TBD)
-
Smart Enegy Saving(~70%): 294W (TBD)
-
DPM: 0.5W
-
Power off: 0.5W
.
|
| |
| |
| SOUND |
| |
|
|
| |
| |
| CERTIFICATION |
| |
- Safety: CB / NRTL
-
EMC: FCC Class "A" / CE / KC
-
ErP / Energy Star: Yes (NewErP) / No (TBD)
.
|
| |
| |
| SOFTWARE COMPATIBILITY |
| |
- SuperSign CMS: Yes
-
SuperSign Control / Control+: Yes / Yes
-
SuperSign WB: Yes
-
SuperSign Media Editor: Yes
-
Promota: Yes (Not available for EU/CIS)
-
Mobile CMS: Yes
-
Signage 365 Care: Yes
.
|
| |
| |
| LANGUAGE |
| |
- OSD: English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
.
|
| |
| |
| ACCESSORY |
| |
- Basic: Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
.
|
| |
