| Video and Audio |
| IP Video Input |
32-Channel |
| Incoming Bandwidth |
320 Mbps |
| Outgoing Bandwidth |
320 Mbps |
| HDMI Output Resolution |
1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output Resolution |
1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Video Output Mode |
HDMI/VGA Independent Output |
| Multi-View Display |
1/4/6/8/9/16/25/32/36 |
| DECODING |
| Audio Compression |
G.711A/G.711U/G.726 |
| Decoding Format |
H.265+/H.265/ H.264+/H.264 |
| Video Compression |
H.265+/H.265/ H.264+/H.264 |
| Record Resolution |
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Live View/Playback Resolution |
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ |
| 2CIF/CIF/QCIF |
| Synchronous Playback |
16-Channel |
| Capability |
16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP |
| (30 fps) |
| Record Management |
| Record Mode |
• Manual Recording |
| • Scheduling Recording |
| • Motion Detection Recording |
| Playback Mode |
• Instant Playback |
| • Regular Playback |
| • Tag Playback |
| • Event Playback |
| Backup Mode |
• Regular Backup |
| • Video Clip Backup |
| Playback Function |
• Play |
| • Pause |
| • Stop |
| • Fast Forward |
| • Fast Backward |
| • Play By Frame |
| • Full Screen |
| • Video Clip |
| • Export Clip |
| • Digital Zoom |
| • Lock Recording |
| • Audio On/Off |
| Hálózat |
| Szabvány |
UPnP (Plug and Play), NTP (Network Timing), TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access |
Android, iOS |
| Incoming Bandwith |
320 Mbps |
| Outgoing Bandwidth |
320 Mbps |
| Web Browser |
Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability |
ONVIF, CGI |
| External Interface |
| Network Interface |
2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet |
| Interface |
| USB Interface |
USB Interface |
| Audio Interface |
1, Audio In; 1, Audio Out |
| Alarm In/Out |
16.ápr |
| Serial Interface |
1, RS232 |
| Power |
1× AC Jack |
| Reset Button |
1 |
| Speaker |
N/A |
| eSATA |
N/A |
| HDMI |
1 |
| VGA |
1 |
| HARD DISK |
| SATA |
4 SATA Interfaces |
| Capacity |
Up to 10 TB Capacity for Each HDD |
| Alarm |
| General Alarm |
Motion Detection, Video Tampering, Intrusion Detection, |
| Line-Crossing Detection |
| Anomaly Alarm |
Video Loss, Offline and IP Conflict,Disk Exception, Login |
| Exception, Fan Exception |
| Alarm Linkage |
Recording, White Ligh Alarm, Buzzer, Log, Audible Alarm |
| Network Management |
| Network Protocols |
UPnP (Plug and Play), NTP (Network Timing) |
| Interoperability |
ONVIF, CGI |
| Mobile Phone Access |
Android, iOS |
| Browser |
Chrome (57+), Firefox (52+), Edge (91+) |
| Record Playback |
| Record Mode |
Manual Recording, Scheduling Recording, Motion Detection |
| Recording |
| Playback Mode |
Instant Playback, Regular Playback, Tag Playback, Event |
| Playback |
| Backup Mode |
Regular Backup, Video Clip Backup |
| Playback Function |
Play, Pause, Stop, Fast Forward, Fast Backward, Play by |
| Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, |
| Lock Recording, Audio On/Off |
| Általános |
| Storage Temperature |
-40–70 °C |
| Storage Humidity |
10%~90% RH Non-Condensing |
| Csomagolás tartalma |

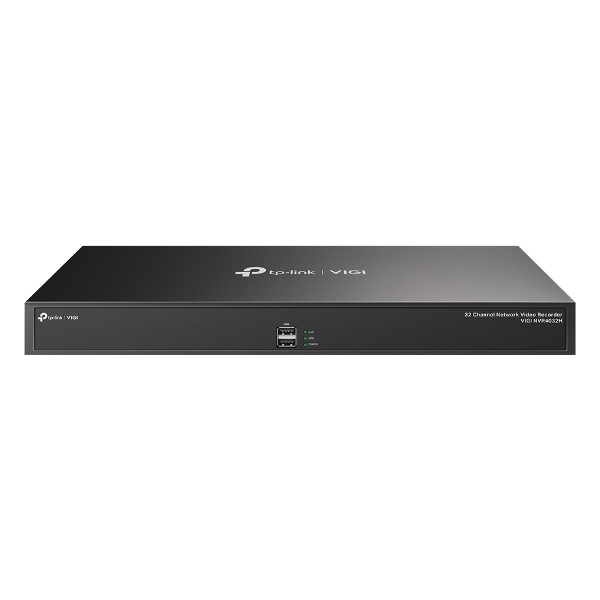

VIGI Network Video Recorder |
| Mouse |
| Installation Guide |
| Power Cord, HDD Power Cables, HDD Data Cables, and Terminal Blocks |
| Mounting Brackets, Screws and Rubber Feet |
| Working Temperature |
-10–55 °C |
| Working Humidity |
10%~90% RH Non-Condensing |
| Méretek (Sz x Mé x Ma) |
440 × 330 × 44 mm |
| Külső tápellátás |
100-240 VAC, 50 to 60HZ, 1.5A |
| Net Weight |
4.0 Kg |
| Gross Weight |
5.2 Kg# |
| Power Supply |
100-240 VAC, 50 to 60HZ, 1.5A |
| Power Consumption |
5 W (Without Disk) |
| 48 W (With Disk) |
| Certifications |
CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI |
| Videó/Kép |
| IP Video Input |
32-Channel |
| Multi-View Dispaly |
1/4/6/8/9/16/25/32/36 |
| Video Output Mode |
HDMI/VGA Independent Output |
| Recording Resolution |
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ |
| 2CIF/CIF/QCIF |
| HDMI Output Resolution |
1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, |
| 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, |
| 1280x720/60Hz, 1024x768/60Hz |
| VGA Output Resolution |
1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, |
| 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, |
| 1024x768/60Hz |
