Overview

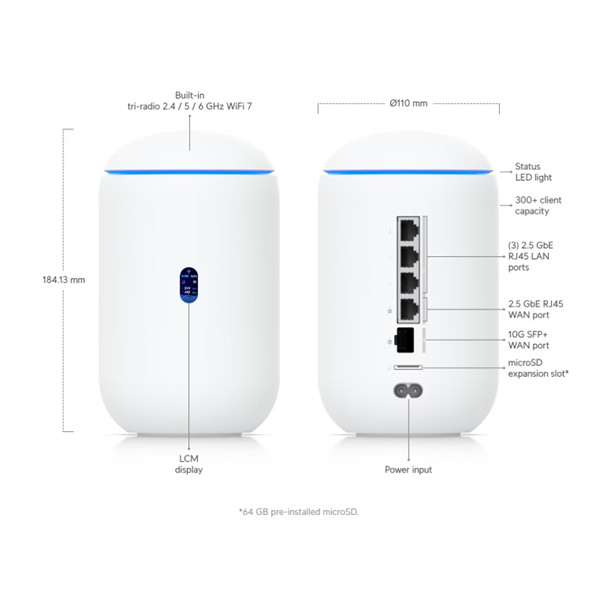

Dimensions
O110 x 184.1 mm (O4.3 x 7.3")
UniFi Application Suite
Network
Yes
Protect
Yes
Access
Yes
Talk
Yes
Connect
Yes
Managed UniFi Devices
30+
Managed Cameras
(5) HD (2) 2K (1) 4K
Simultaneous Users Connected
300+
Default WAN Ports
(1) 10G SFP+ (1) 2.5 GbE RJ45
LAN Ports
(3) 2.5 GbE RJ45 including (1) PoE
IDS/IPS Throughput
2.3 Gbps
Form Factor
Compact desktop
Security
Stateful Firewall
Yes
Application-Aware Layer 7 Firewall
Yes
DPI & Traffic Identification
Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes
Content Filtering
Yes
Intrusion Prevention (IPS/IDS)
Yes
Ad Blocking
Yes
IDS/IPS Signatures
20,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation
Yes
VPN & SD-WAN
License-Free SD-WAN
Yes
Site-to-Site VPN
Site Magic
Yes
IPsec
Yes
OpenVPN
Yes
VPN Server
Identity Endpoint One-Click VPN
Yes
Teleport Zero-Configuration VPN
Yes
WireGuard
Yes
OpenVPN
Yes
L2TP
Yes
VPN Client
OpenVPN
Yes
WireGuard
Yes
Networking
Multi-WAN Load Balancing
Yes
Dynamic Routing
OSPF
Yes
Advanced QoS
Yes
Multicast DNS (mDNS)
Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes
Integrated RADIUS Server
Yes
RADIUS over TLS (RadSec)
Yes
Additional Internet Failover with UniFi LTE Backup
Yes
Internet Quality and Outage Reporting
Yes
MAC Address Table Size
2,000
Policy-based WAN and VPN Routing
Yes
Customizable DHCP Server
Yes
IPv6 ISP Support
Yes
IGMP Proxy
Yes
Integrated WiFi
WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput
6 GHz
5.7 Gbps
5 GHz
4.3 Gbps
2.4 GHz
688 Mbps
MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Antenna Gain
6 GHz
6 dBi
5 GHz
7 dBi
2.4 GHz
5 dBi
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs
4 per Radio
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Hardware
NVR Storage
Pre-installed 64GB microSD for NVR
Expansion Slot
MicroSD Card
PoE Budget
15.4W
Max. PoE Wattage per Port by PSE
PoE
15.4W
Voltage Range PoE Mode
44-57V
Max. Power Consumption
26W (Excluding PoE output)
Power Method
Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
Power Supply
AC/DC, Internal, 50W
Max. TX Power
6 GHz
24 dBm
5 GHz
26 dBm
2.4 GHz
23 dBm
Supported Voltage Range
100-240V AC
Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory
3 GB
Weight
1.1 kg (2.4 lb)
Enclosure Material
Polycarbonate
LCM Display
0.96" status display
Management
Ethernet Bluetooth
LEDs
System
Yes
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Button
(1) Factory-reset
Software
VLAN
802.1Q
Guest Traffic Isolation
Yes
Application Requirements
UniFi Network
Version 9.0.108 and later
