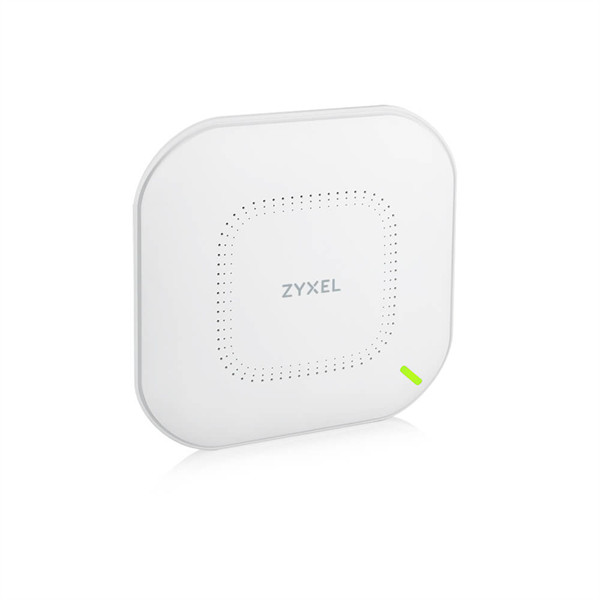

ZYXEL Wireless Access Point Dual Band AX1800 Falra rögzíthető, NWA110AX-EU0102F
ZYXEL Wireless Access Point Dual Band AX1800 Falra rögzíthető, NWA110AX-EU0102F
74 289 Ft

ZYXEL Wireless Access Point Dual Band AX1800 Falra rögzíthető, NWA110AX-EU0102F

ZYXEL Wireless Access Point Dual Band AX1800 Falra rögzíthető, NWA110AX-EU0102F



Garancia
60 hónap
Raktáron   (3 db)
74 289 Ft
A vásárlás után járó pontok: 743 Ft
Hitelkalkulátor
Részletek
Models
NWA110AX
NWA110AX
Product name
Description 802.11ax (WiFi 6) Dual-Radio PoE Access Point
Wireless
Standard IEEE802.11 ax/ac/n/g/b/a
MIMO MU-MIMO
Wireless speed 2.4GHz: 575Mbps
5GHz: 1200Mbps
Frequency band 2.4 GHz (IEEE 802.11 b/g/n)
  • USA (FCC): 2.412 to 2.462 GHz
  • Europe (ETSI): 2.412 to 2.472 GHz
5 GHz (IEEE 802.11 a/n/ac)
  • USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
  • European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth 20-, 40- and 80-MHz
Conducted typical transmit output power US (2.4GHz/5GHz): 23/23dBm
EU (2.4GHz/5GHz): 20/22dBm
RF Design
Antenna type 2x2 MIMO optimized Antenna
MTBF 635,837
Antenna gain 2.4GHz: Peak Gain 5dBi
5GHz: Peak Gain 6dBi
Minimum Receive sensitivity Min. Rx sensitivity up to -101 dBm
WLAN feature
Band Steering Yes
WDS/Mesh Yes (V6.10)
Fast roaming Pre-authentication, PMK caching and 802.11r/k/v
DCS Yes
Load balancing Yes
Security
Wireless Security
  • WEP
  • WPA
  • WPA2-PSK
  • WPA3
Authentication
  • WPA
  • WPA2-Enterprise
  • EAP
  • IEEE 802.1X
  • RADIUS authentication
Access management
  • L2-isolation
  • MAC filtering
Networking
IPv6 Yes
VLANs Yes
WMM Yes
U-APSD Yes
DiffServ marking Yes
Management
Operating mode
  • Nebula Cloud managed
  • Standalone
ZON Utility
  • Discovery of Zyxel switches, APs and gateways
  • Centralized and batch configurations
    • IP configuration
    • IP renew
    • Device factory reset
    • Device reboot
    • Device locating
    • Web GUI access
    • Firmware upgrade
    • Password configuration
Zyxel Wireless Optimizer
  • WiFi AP planning
  • WiFi coverage detection
  • Wireless health management
Web UI/ CLI Yes
SNMP Yes
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)
180 x 180 x 39 / 7.09 x 7.09 x 1.54
Weight (g/lb.)
453g/1
Packing Dimensions (WxDxH)(mm/in.)
229 x 216 x 64 / 9.02 x 8.5 x 2.52
Weight (g/lb.)
770g/1.7
Included accessories
  • Mount plate
  • Mounting screws
  • power adapter
Physical Interfaces
Ethernet port
  • 1 x 10/100/1000M LAN
Power
  • PoE (802.3)at: power draw 17 W
  • DC input : 12 VDC 1.5A
Environmental Specifications
Operating Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 95% (non-condensing)
Storage Temperature
-30°C to 70°C/-22°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
Radio
  • FCC Part 15C
  • FCC Part 15E
  • ETSI EN 300 328
  • EN 301 893
  • LP0002
EMC
  • FCC Part 15B
  • EN 301 489-1
  • EN 301 489-17
  • EN55022
  • EN55024
  • EN61000-3-2/-3
  • EN60601-1-2
  • BSMI CNS13438
Safety
  • Safety EN 60950-1
  • IEC 60950-1
  • BSMI CNS14336-1

Adatok
Gyártó
ZYXEL
Gyártó
ZYXEL
Gyártói cikkszám
NWA110AX-EU0102F
EAN
4718937610259
EAN
4718937610259
Kültéri kivitel
Nem
Frekvencia
2.4GHz, 5GHz
Sebesség
1200
Szabvány
IEEE 802.11 b/g/n, IEEE 802.11 a/n/ac
Szállítási idő
3 munkanap
Szállítási költség
1290
Pepita árszorzó
1,2
Repeater funkció
Van
Bridge funkció
Van
Rejtett SSID
Igen
Cikkszám
H25301160
Tömeg
2,235 kg/db
