| Kamera |
| Képérzékelő |
1/2.7” Progressive Scan CMOS |
| Shutter Speed |
1/3 to 1/10000 s |
| Slow Shutter |
Yes |
| Min. szükséges megvilágítás |
0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism |
IR Cut Filter |
| Day/Night Switch |
Unified/ Scheduled/ Auto |
| LENS |
| Type |
Fixed Focal Lens |
| Focal Length |
2.8/4/6 mm |
| Aperture |
F1.6 |
| FOV |
• 2.8 mm: |
| Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° |
| |
| • 4 mm: |
| Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4° |
| |
| • 6 mm: |
| Horizontal FOV: 57.3°, Vertical FOV: 31.3°, Diagonal FOV: 67.2° |
| Lens Mount |
M12*P 0.5 |
| DORI Distance |
• 2.8 mm |
| Detect: 64 m (210 ft) |
| Observe: 27 m (89 ft) |
| Recognize: 13 m (43 ft) |
| Identify: 6 m (20 ft) |
| |
| • 4 mm |
| Detect: 80 m (262 ft) |
| Observe: 33 m (108 ft) |
| Recognize: 16 m (52 ft) |
| Identify: 8 m (26 ft) |
| |
| • 6 mm |
| Detect: 120 m (394 ft) |
| Observe: 50 m (164 ft) |
| Recognize: 24 m (79 ft) |
| Identify: 12 m (39 ft) |
| Angle Adjustment (Manual) |
| Range |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| ILLUMINATOR |
| IR LED |
• Quantity: 2 |
| • Range: 30m |
| • Wavelength: 850nm |
| White LED |
• Quantity: 2 |
| • Range: 30m |
| Illuminator On/Off Control |
Auto/Scheduled/Always on/Always off |
| VIDEO |
| Max. Resolution |
2880 X 1620 |
| Main Stream |
• Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| |
| • Resolution: |
| 2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080, |
| 1280x720 |
| |
| • Note: |
| If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream |
• Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| |
| • Resolution: |
| 704x576,640x480, 352x288, 320x240 |
| |
| • Note: |
| If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control |
CBR, VBR |
| Video Compression |
• Main Stream: H.265+/H.265/H.264+/H.264 |
| • Sub-Stream: H.265/H.264 |
| H.264 Type |
High Profile |
| H.264+ |
Main Stream Supported |
| H.265 Type |
Main Profile* |
| H.265+ |
Main Stream Supported* |
| Video Bit Rate |
• Main Stream: 256 Kbps to 6 Mbps |
| • Sub-Stream: 64 Kbps to 512 Kbps |
| Image |
| Image Settings |
• Mirror |
| • Brightness |
| • Contrast |
| • Saturation |
| • Sharpness |
| • Exposure |
| • WDR |
| • White Balance |
| • Prevent Overexposure to Infrared Light |
| • HLC Adjustable by Client Software |
| Image Enhancement |
BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range |
120 dB |
| |
| Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
| SNR |
? 52 dB |
| Image Parameters Switch |
Yes |
| Privacy Mask |
Up to 4 Masks |
| ROI |
1 Region |
| OSD Setting |
Yes |
| Hang |
| Hangkommunikáció |
Two-Way Audio |
| Hangbemenet |
Yes |
| Hangkimenet |
Yes |
| Hangtömörítés |
Yes |
| Audio Sampling Rate |
8KHz |
| Environment Noise Filtering |
Yes |
| Audio Bit Rate |
64 Kbps(G.711 alaw) |
| Hálózat |
| Szabvány |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF |
Yes |
| API |
Open Network Video Interface (Profile S) |
| Simultaneous Live View |
3 Main Streams & 3 Sub-Streams |
| Client |
VIGI App, VIGI Security Manager, Web UI, VIGI VMS |
| Web Browser |
• Google Chrome® 57 and above |
| • Firefox® 52 and above |
| • Safari® 11 and above |
| • Microsoft® Edge 91 and above |
| Cloud |
Yes |
| Biztonság |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Figyelmeztetési és eseménykezelési vezérlés |
| Smart Event |
• Human & Vehicle Classification |
| • Intrusion Detection |
| • Line-Crossing Detection |
| • Region Entering Detection |
| • Region Exiting Detection |
| • Object Abandoned Detection |
| • Object Removal Detection |
| • Loitering Detection |
| • Smart Frame |
| • People Detection |
| • Vehicle Detection |
| Basic Event |
• Motion Detection |
| • Video Tampering Detection |
| • Exception ( Illegal Login) |
| • Scene Change Detection |
| Alarm Linkage |
• Memory Card Video Recording |
| • Message Push |
| • Audible Warning |
| • White Light Flashing |
| Linkage Method |
N/A |
| Output Notification |
Message Push |
| Deep Learning Function |
| People & Vehicle Analytics |
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
| Fizikai kezelőfelület |
| Hálózati csatlakozás |
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm |
N/A |
| Reset Button |
Yes |
| Power |
DC Power Port |
| On-board Storage |
Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB** |
| Built-in Microphone |
Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker |
Yes |
| Audio |
N/A |
| Általános |
| Operating Temperature |
-30–60 °C |
| Storage Temperature |
-40–60 °C |
| Operating Humidity |
95% or Less (Non-Condensing) |
| Storage Humidity |
95% or Less (Non-Condensing) |
| Csomagolás tartalma |

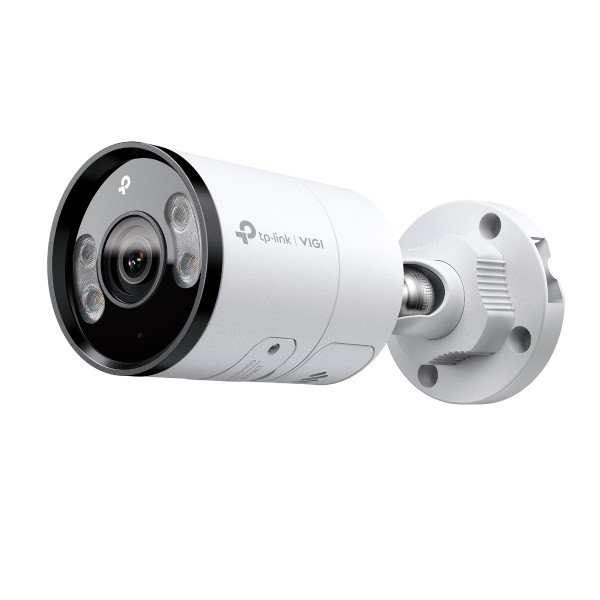

• VIGI Network Camera |
| • Quick Start Guide |
| • Waterproof Cable Attachments |
| • Mounting Accessories |
| Material |
Metal |
| Net Weight |
0.525 Kg |
| Power Supply |
• 12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug |
| • PoE: 802.3af/at, class 0, Max. 10.7 W |
| Protection |
IP67 |
| Product Dimensions (L x W x H) |
74 × 184 × 74 mm |
| Certifications |
CE, NTRA, VCCI, KC, BSMI, FCC, IC |
