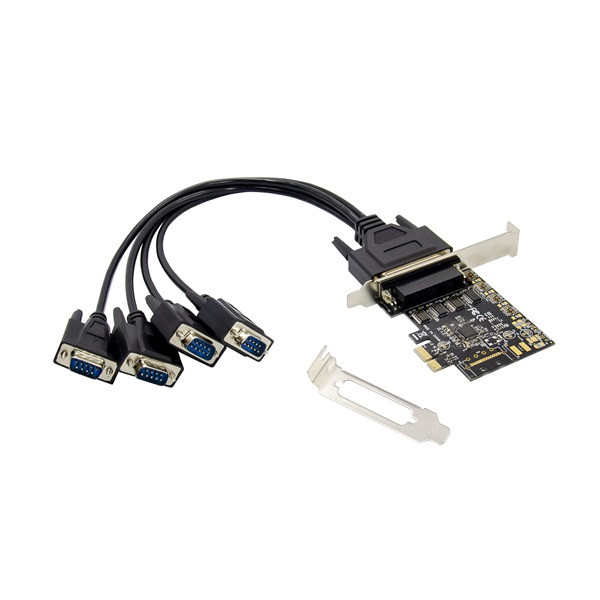

EMRICK12B 4-Port DB9 RS232 Serial PCIe Card
Model Number
EMRICK12B
SKU
110014507101
- Expands your system's connectivity with the addition of 4 RS232 (DB9) serial ports
- Compliant with PCI Express 2.0 Gen 1
- On chip 256-byte depth FIFO in transmit, receive path of each port
- Supports Slow IrDA mode (up to 115200bps) on all serial ports
More Information
| Logistics data |
|
| Harmonized System (HS) code |
847330 |
| Customs product code (TARIC) |
8473302000 |
| Others |
|
| Approval and Compliance |
CE, RoHS |
| Operating humidity |
5% RH ~ 95% RH |
| Operating temperature |
-10°C ~ 55°C |
| Compatible operating systems |
Windows XP
Windows 7
Windows 8
Windows 8.1
Windows 10
Windows 11
Linux kernel 2.6 and higher |
| Storage temperature |
-40°C ~ 70°C |
| Package Contents |
EMRICK12B
Low profile bracket
Driver CD
Multilingual quick installation guide |
| Physical Specifications |
|
| Dimensions (W x D x H) |
85 x 69 x 3 mm |
| Product weight (kg) |
0.25 |
| General |
|
| Color |
Black |
| EAN |
4015867236628 |
| Model Number |
EMRICK12B |
| System specifications |
|
| Connector |
PCIe x1 |
| PCI version |
PCIe 2.0 |
| Port Configuration |
RS-232 x 4 |
The 4-Port DB9 RS232 Serial PCIe Card features four serial ports, providing an easy expansion for additional devices. The serial ports support the RS-232 protocol with a transmission speed of up to 115200bps and also support hardware and software flow control.
