IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
2.4 GHz, 5 GHz
867 Mbps (5 GHz) + 300 Mbps (2.4 GHz), compatible with 11ac/a/b/g/n Wi-Fi standards
11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT40 MCS7: -74dBm 11n HT20 MCS7: -71dBm 11a 6Mbps: -97dBm 11a 54Mbps: -79dBm 11ac VHT20 MCS8: -74dBm 11ac VHT40 MCS9: -70dBm 11ac VHT80 MCS9: -65dBm
2.4 GHz < 20dBm (EIRP) 5 GHz < 23dBm (EIRP)
WPA-PSK / WPA2-PSK
Router Mode, Access Point Mode
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Access Control Local Management Remote Management
Server, DHCP Client List
Port Forwarding, Port Triggering, UPnP, DMZ
SPI Firewall, IP and MAC Address Binding
2.4 GHz Guest Network, 5 GHz Guest Network
6.3 × 5.0 × 1.5 in (159.7 × 125.9 × 37.1 mm)

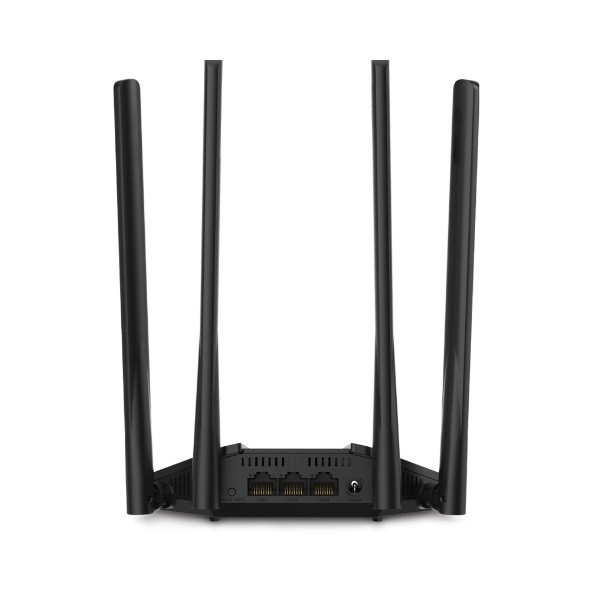

1× Gigabit WAN Port + 2× Gigabit LAN Ports
WPS/Reset Button
4× 5 dBi Fixed Omni-Directional Antennas
• AC1200 Wireless Dual Band Gigabit Router (MR30G) • Power Adapter • Quick Installation Guide • RJ45 Ethernet Cable
• Operating Temperature: 0°C~40°C (32°F~104°F) • Operating Humidity: 10%~90% Non-Condensing • Storage Humidity: 5%~90% Non-Condensing
