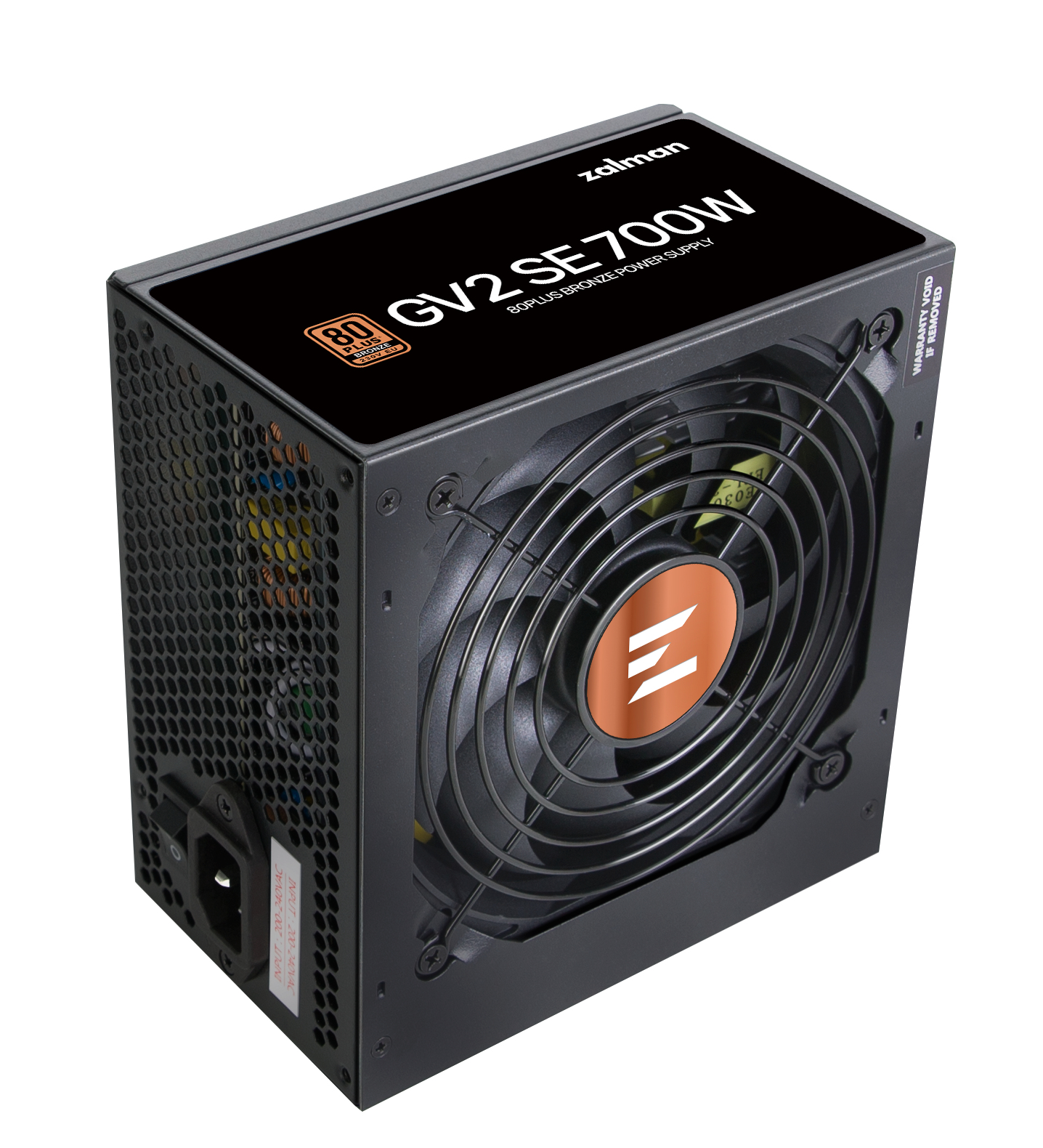

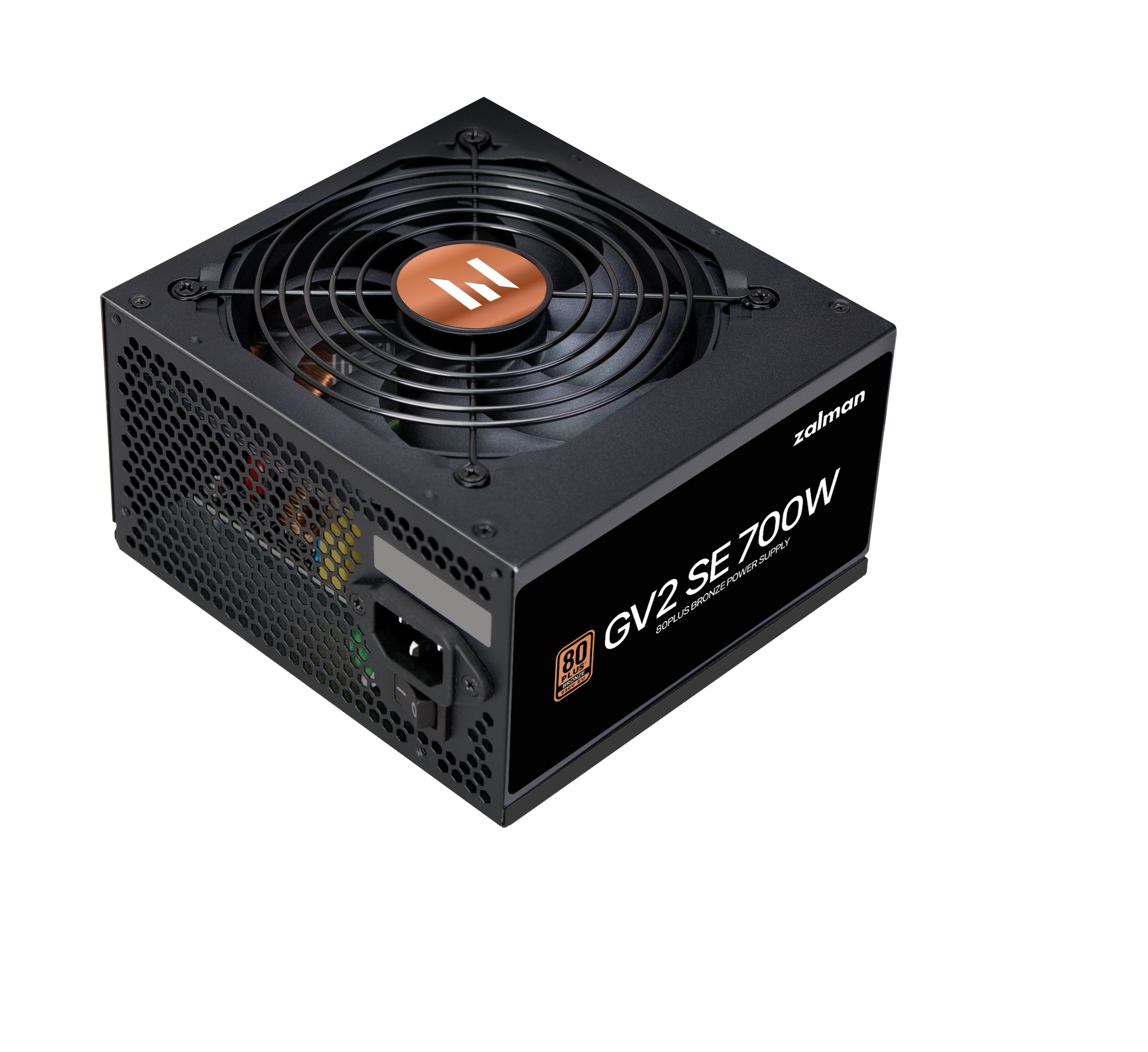

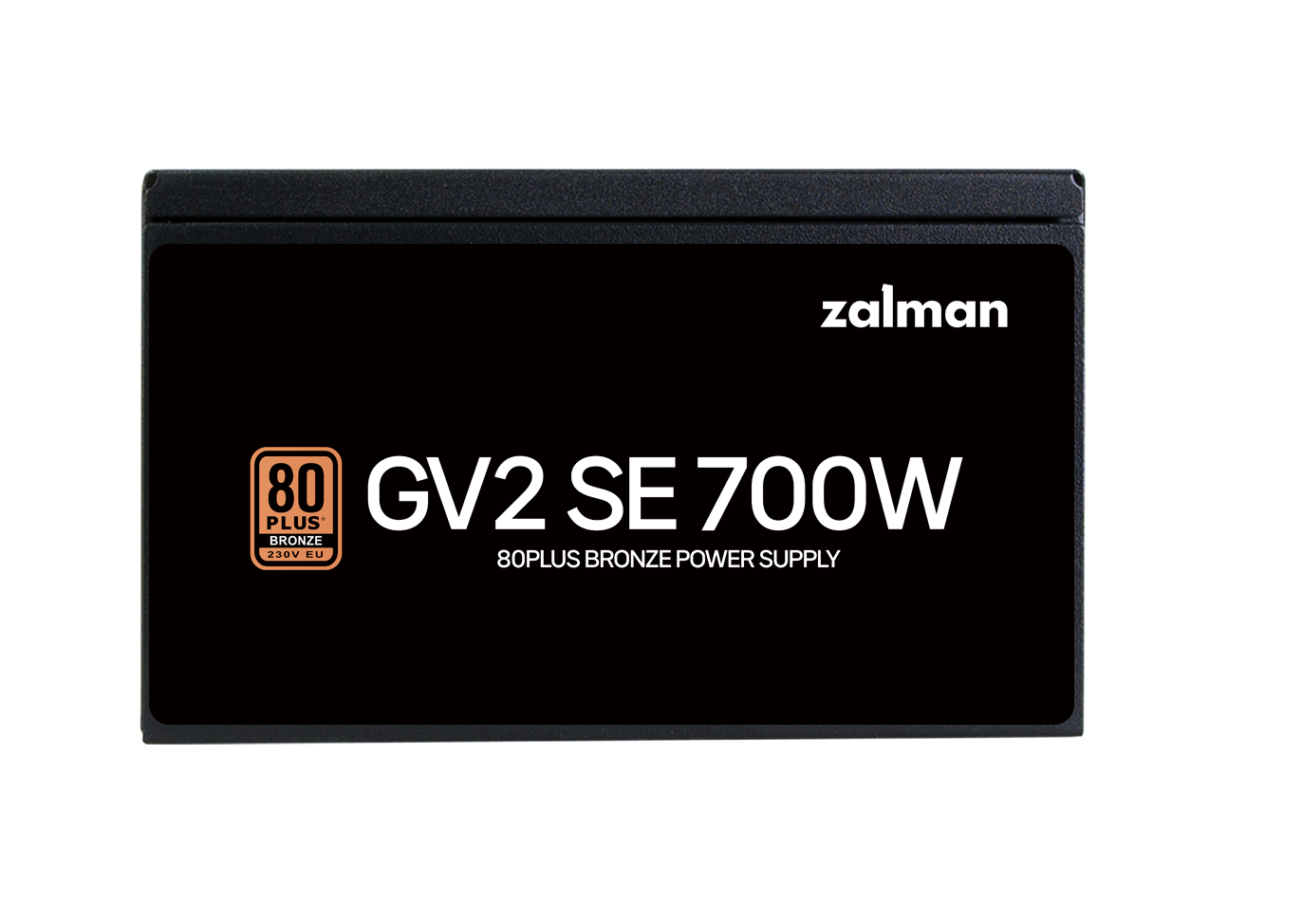

Erősebb videókártyás gépekhez is elegendő 700 W-os Zalman táp, 80 Plus Bronze tanúsítvánnyal, ATX 12V 2.52 szabvány.
Műszaki adatok
| Power | |
|---|---|
| Total power | 700 W |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 6 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 700 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 58.33 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 88% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | HDB |
| Mean time between failures (MTBF) | 100000 h |
| Design | |
| Product colour | Black |
| Fan diameter | 12 cm |
| Operational conditions | |
| Operating temperature (T-T) | 10 – 40 °C |
| Certificates | |
| Compliance certificates | CB, CE, EAC, KC, RCM, RoHS |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.79 kg |
Gyártói cikkszám: ZM700-GV2SE · EAN: 8800263650200
